Core shack equipment that does the lifting.
Adjustable logging tables, pallet lifters, sampling stations and racks, engineered and certified for mining and exploration. CGS Mule is a distributor for CoreLift equipment.
Why CoreLift
Engineered, certified and covered for three years after purchase. Built for heavy use, with all components water resistant.
3 yr
Longest warranty in the industry
UL/CSA
Certified engineered
120/208/240V
Plugs into any outlet
Adjustable Logging Table
Engineered to enhance efficiency in core sample logging and geological analysis. Built with adaptability and safety in mind, this table is a reliable workstation for mining and exploration professionals.
- Full adjustability: height and angle, for the right ergonomic position
- Customizable: technology package (monitor, camera system, laptop and keyboard tray), water management and extra rollers for different box types
- Built to last: heavy use over long periods, 20-year life expectancy, with all components NEMA 4/12 rated.
Request a quote Call for quote: (775) 358-0923

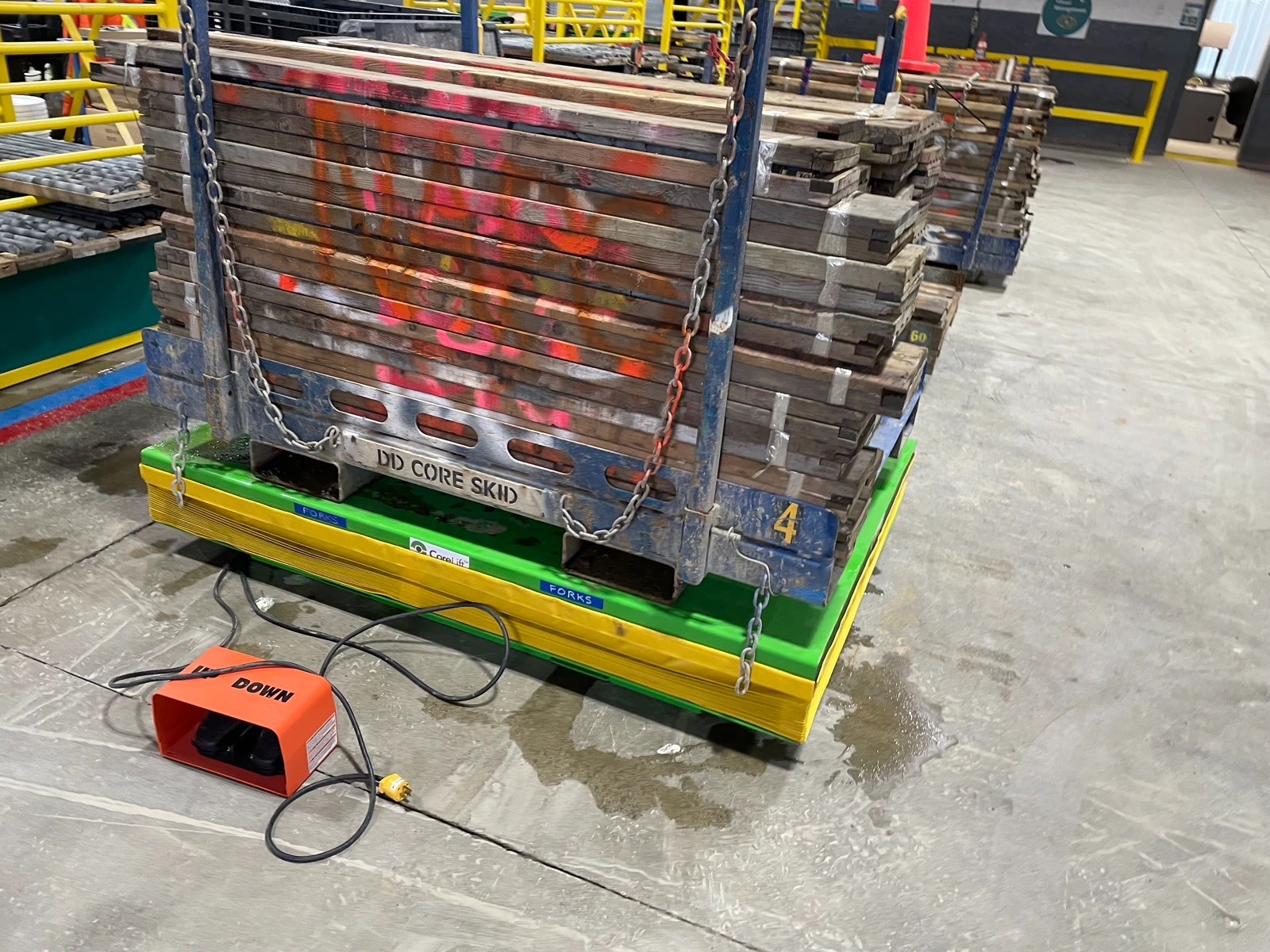

Pallet Lifter
Engineered specifically for handling core boxes. Transfers heavy loads to the bench, roller table or logging table from a low-profile platform, with an easy foot pedal or hand controller. Runs on a standard 120V outlet.
- Platform height: from 8 inches above the ground up to 3 feet
- Platform size: 42 by 42 inches up to 72 by 72 inches, any combination
- Rated 5,000 lbs: fully engineered, with pinch points eliminated by the safety curtain
- Moves with you: bottom pockets open or closed for pallet jack or forklift
Request a quote Call for quote: (775) 358-0923

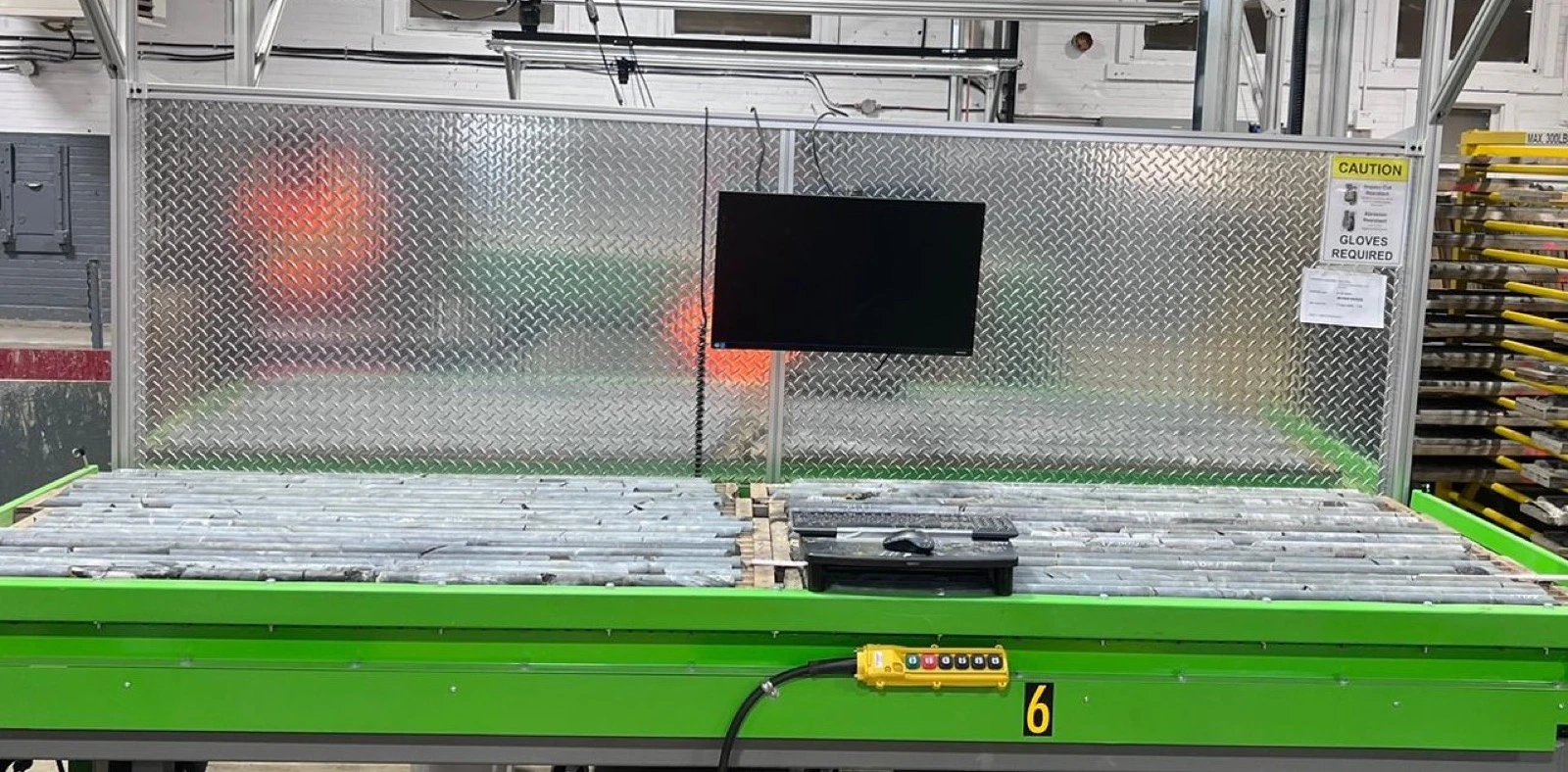

Adjustable Sampling Station
An ergonomic and efficient working environment for geologists and core technicians during core sampling and cutting. Compact yet versatile, it is the right upgrade for any facility.
- Height: from 15 1/2 inches above the ground up to 40 1/2 inches, flat to 40 degrees
- Capacity: holds up to eight 2 ft boxes, rated 1,000 lbs
- Options: fork pockets, pallet jack pockets, caster wheels or a combination
- Plugs in: any 120V 3-prong socket, dual hydraulic pumps on minimal power
Request a quote Call for quote: (775) 358-0923

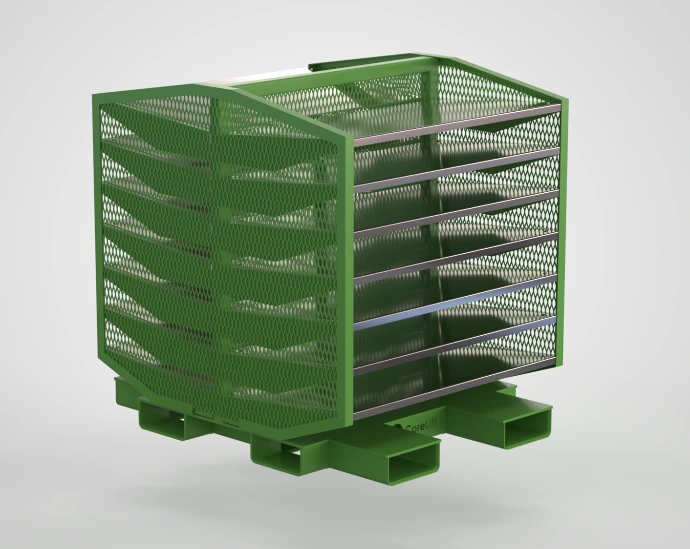

Safe-Rack
A low-profile core rack designed to work seamlessly with other CoreLift products. With a compact footprint, the Safe-Rack holds 28 NQ/HQ boxes and takes up to PQ sized core boxes. Other sizing is available for 5 ft, 3 ft and 2 ft box lengths.
- Box access: reach any box no matter where it sits on the rack, without de-palletizing and re-palletizing
- Easy and safe transport: access the Safe-Rack from any angle while eliminating the risk of falling boxes
- Drainage: clean your core directly on the rack, water flows and drains from the center column
Request a quote Call for quote: (775) 358-0923

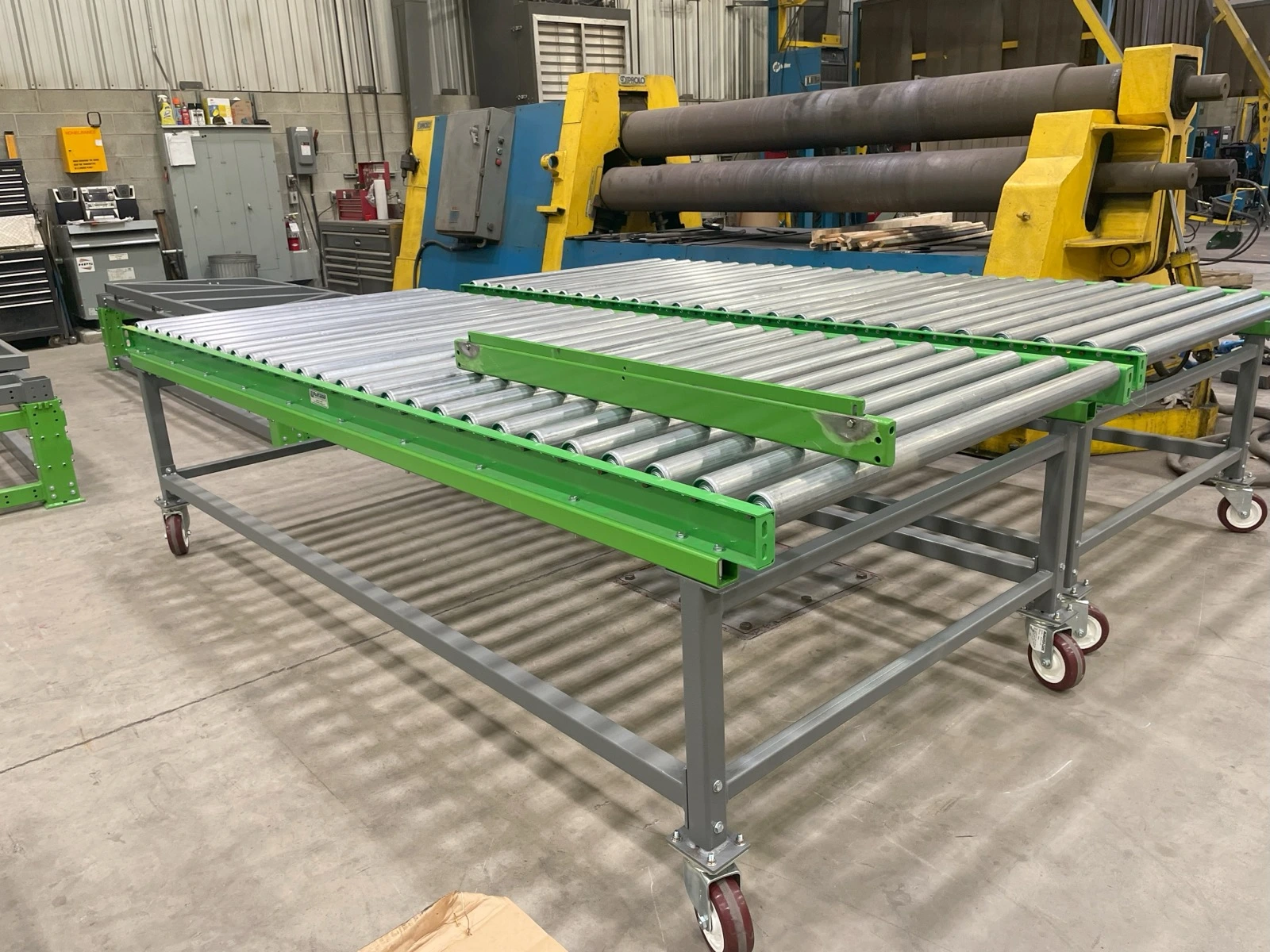

Rolling Roller Table
The easy way to move core boxes within your facility. Designed for convenience and versatility, the table lets core boxes sit in many orientations to suit your workflow.
- Rolls anywhere: four high-quality caster wheels come standard
- Lock & Block: lock multiple tables together or block the ends so no boxes can fall off, with the CoreLift proprietary Lock & Block system
- Sizes: lengths up to 10 ft per table and 2 ft to 4 ft wide, roller height to order
- Robust: certified engineered product built from high-quality steel
Request a quote Call for quote: (775) 358-0923
Setting up a core shack, or fixing one that hurts?
Send us your box sizes, your forklift and a photo of the space, or call (775) 358-0923. We will come back with a quote.
